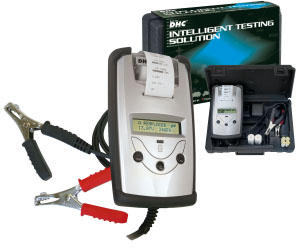

| BT 301/501 DHC - Multistandard battery tester 6V/12V, 7-200 Ah |
|
 |
Characteristic:
Easy to use, very fast and accurate battery tester with integrated printer.
• Diagnosis of lead batteries (liquid or gel electrolyte) - from 7 to 200Ah
• Multi-standard Test range
SAE norm: 40 to 2000A
DIN norm: 25 to 1300A
IEC norm: 30 to 1500A
EN norm: 40 to 2100A
• Test
- without disconnecting the battery from the vehicle
- or on separate battery
• Test can be done on a discharged battery as of 1,5V
• Protected against polarity inversions
• Instantaneous analysis (result within 1 second):
With digital display on LCD screen:
- battery voltage
- available (real) power at start
- state of battery
Immediate printing of results thanks to the integrated printer
• Automatic temperature compensation
• 7 languages: French, English, German, Spanish, Italian, Portuguese, Japanese
• ABS body (acidproof) + anti-shock protection
• Power supply: 4 batteries of 1,5Volt (included, type LR6-AA) for + 800 printings
• Temperature condition: 0°C to 50°C
• Delivered ready for use: 4 batteries, 2 paper rolls, protection case
• Cables length: 0,75m
• Dimensions: 185 x 10 x 35mm
• Weight: 420g
• Consumable: (Ref. 056220) 2 paper rolls |
 |
