Characteristic:

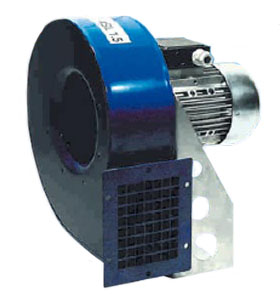

The
fans series ASL are studied for the extraction
of the exhaust gas of motor vehicles and welding
fumes extraction. The housing is in sheet steel
completely stove enamelled.The impeller is in galvanized
steel, spark resistant with forward curved blade
from ASL-0,5 to ASL-3 and with backward curved
blade from ASL-4. Each impeller is balanced. The
engine is compliant with CEI specifications with protection
IP 55.
All the fans are originally three phase
220/380V 50 Hz. Single phase engine 220V 50Hz have
to be expressly required; (for single phase fans
an extra charge of 10% on net price is required)..
Features:
Medium
pressure backward inclined vane fan, suitable for
high dust air content.
Utilization:
• Suction of welding fumes
• Suction of exhaust gasses
• Suction of non oil fumes
Suitable
for installations with high capacity needs and
medium pressure drop; If the fan is mounted
inside
the building it is recommended the use of a soundproof
box.

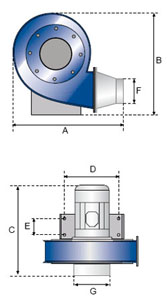

Model
|
Power
|
AMP.
|
Noise
|
Diameter
|
Dimensions
|
Weight
|
HP
|
KW
|
220
V
|
380
V
|
dBa
|
Vhod
|
Izhod
|
A
|
B
|
C
|
D
|
E
|
Kg
|
| AL
0,5 S |
0,50
|
0,35
|
1,70
|
1,00
|
61
|
120
|
120
|
485
|
333
|
401
|
165
|
65
|
14,00
|
| ASL0,75
S |
0,75
|
0,55
|
2,60
|
1,50
|
64
|
120
|
120
|
485
|
333
|
411
|
165
|
65
|
15,20
|
| ASL
1 S |
1,00
|
0,75
|
3,10
|
1,90
|
64
|
150
|
150
|
562
|
447
|
437
|
220
|
85
|
18,00
|
| ASL
1,5 S |
1,50
|
1,12
|
4,50
|
2,60
|
68
|
150
|
150
|
562
|
447
|
445
|
220
|
85
|
20,00
|
| ASL
2 S |
2,00
|
1,50
|
5,70
|
3,40
|
71
|
200
|
200
|
657
|
620
|
495
|
235
|
125
|
28,00
|
| ASL
3 S |
3,00
|
2,20
|
8,30
|
5,00
|
71
|
200
|
200
|
657
|
620
|
523
|
235
|
125
|
28,50
|
| ASL
4 S |
4,00
|
3,00
|
11,30
|
6,20
|
79
|
250
|
250
|
894
|
745
|
618
|
295
|
185
|
66,00
|
| ASL
5,5 S |
5,50
|
4,00
|
15,40
|
8,20
|
80
|
280
|
280
|
995
|
820
|
620
|
300
|
200
|
77,00
|
| ASL7,5
S* |
7,50
|
5,50
|
20,60
|
12,00
|
84
|
300
|
300
|
1100
|
930
|
620
|
360
|
250
|
110,00
|
| ASL
10 S* |
10,00
|
7,50
|
26,30
|
15,20
|
85
|
300
|
300
|
1100
|
930
|
710
|
360
|
250
|
130,00
|
*
Version 400 V / 60-50 Hz
|
