Characteristic:

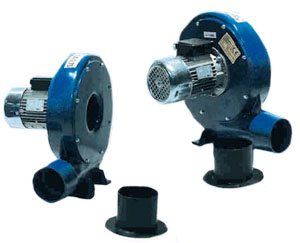

The fans series AVA are studied for the extraction
of the exhaust gas of motor vehicles. The housing
is in casting aluminium and the impeller is in
galvanized steel, spark resistant. Each impeller
is dinamically and statically balanced. The engine
is compliant with the CEI specifications with protection
level IP 55. All the fans are originally three
phase 230/400V 50 Hz. One phase engine 220V 50Hz
have to be expressly required;
for single phase fans an extra charge of 10% on
net price is required.
Features:
Medium pressure onward inclined vane fan, suitable
for clean or medium dust air content.
Utilization:
• Suction of exhaust gasses
Model
|
Power
|
AMP.
|
Noise
|
Diameter
|
Dimensions
|
Weight
|
HP
|
KW
|
230
V
|
400
V
|
dBa
|
Vhod
|
Izhod
|
A
|
B
|
C
|
D
|
E
|
Kg
|
| AVA
0,33 |
0,33
|
0,25
|
0,5
|
1,00
|
58
|
120
|
120
|
330
|
360
|
270
|
100
|
75
|
11,00
|
| AVA
0,5 |
0,50
|
0,35
|
1,70
|
1,00
|
62
|
120
|
120
|
478
|
445
|
311
|
170
|
102
|
13,00
|
| AVA
0,75 |
0,75
|
0,55
|
2,60
|
1,50
|
65
|
120
|
120
|
478
|
445
|
311
|
170
|
102
|
14,00
|
| AVA
1 |
1,00
|
0,75
|
3,10
|
1,80
|
67
|
120
|
120
|
518
|
495
|
343
|
158
|
108
|
19,30
|
| AVA
1,5 |
1,50
|
1,12
|
4,50
|
2,60
|
72
|
120
|
120
|
518
|
495
|
343
|
158
|
108
|
20,80
|
| AVA
2 |
2,00
|
1,50
|
5,70
|
3,30
|
74
|
120
|
120
|
578
|
585
|
362
|
206
|
144
|
28,90
|
| AVA
3 |
3,00
|
2,20
|
8,30
|
4,80
|
77
|
120
|
120
|
587
|
585
|
362
|
206
|
144
|
29,90
|
|
