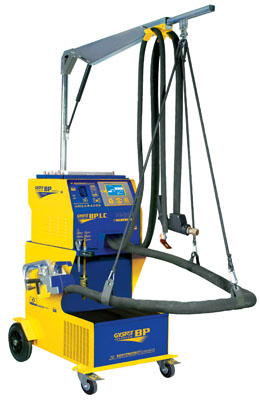

Welding device Gyspot Inverter BP LC

Characteristics:
Spot-welding machine and equipment. The Gyspot INVERTER BP.LC product is a real advance in the field of spot-welding equipment. This machine is the ideal answer to the welding requirements of high strength steels (UHSS/boron steel), with 550 daN electrode arms force at 8 bars and 13 000 Amps welding current.
This machine is fully compliant with the European directive 2004/40/EC.

Description:

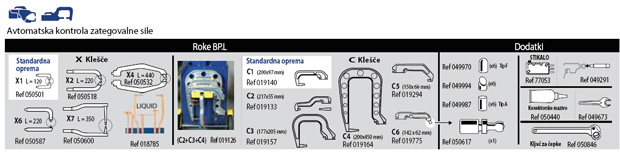

Ideal clamp for all types of metal works
• Lightweight and easy to handle: Weight: 5 kg
• Clamping force at 8 bars: 550 daN
• Single-sided welding tool with 3 meter cable:
spot hammer welding, stud/rivet/ring welding,
carbon shrinking
• Accessory box
• Support cable bracket with a telescopic arm
• Control display 6”
• Remote control on the clamp:

Performance:
• Welding current:
- High welding current 13 000 A
- Digital display of the actual current value
- Sound alert if the welding current is too low
- Constant current control

• Electrode force:
- Electrode force control
- Digital display of the actual electrode arms force
- Lightweight clamp: Weight 5 kg
- High clamping force: 550 daN with at 8 bars
- Liquid-cooled arms up to the tips
- Sound alert if the actual clamp force is too low

Machine interface:
• User friendly: Large display (6”), with intuitive menus
• Easy: Only 2 parameters to be selected (thickness and steel sheet type)
• Saving of user welding parameters

Traceability:
• Record on SD card of the characteristics of each welding spot performed
