Welding device Gyspot EVOLUTION

Gys

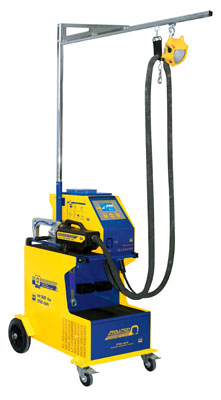

Spot welding device Gyspot EVOLUTION


Characteristics:

Spot-welding machine and equipment.The Gyspot PTI Evolution product is a real advance in the field of spot-welding equipment, with a C-clamp that integrates the latest techno-logies. This machine is the ideal answer to the welding requirements of high strength steels (UHSS/boron). This inverter technology machine also brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only. The clamping force can reach 550 daN with 8 bars air pressure, and the welding current can reach 14 500Amps.

Innovation:
• Liquid cooled medium frequency transformer integrated in the clamp
• Lower electricity consumption (40% less than
cable machine)
• Operating with only 16 Amps delayed fuses
power supply
• High duty factor

Description:
• Ideal C clamp for all types of metal works
• Lightweight and easy to handle: Weight 12 kg
• Support cable bracket with a telescopic arm
• Control display 6’’
• Remote control on the clamp

Performance:
• Welding current:
- High welding current 14 500 A
- Digital display of the actual current value
- Sound alert if the welding current is too low
- Constant current control
- Low electrical consumption

• Electrode force:
- Electrode force control
- Digital display of the actual electrode arms force
- High clamping force: 550 daN with at 8 bars
- Liquid-cooled arms up to the tips
- Sound alert if the actual clamp force is too low

Machine interface:
• User friendly: Large display (6”), with intuitive menus
• Easy: Only 2 parameters to be selected (thickness and steel sheet type)
• Saving of user welding parameters

Traceability:
• Record on SD card of the characteristics of each welding spot performed
• Restoration on any PC of the reports saved on the SD card
Technical features:

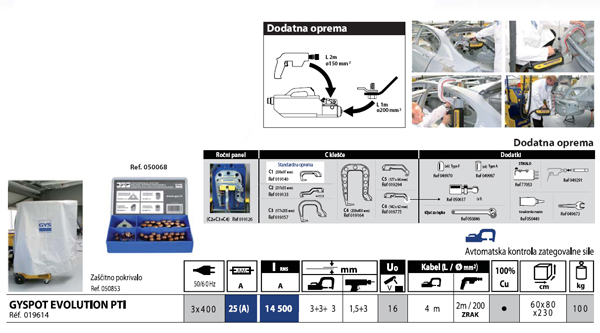

Table of welding machine
