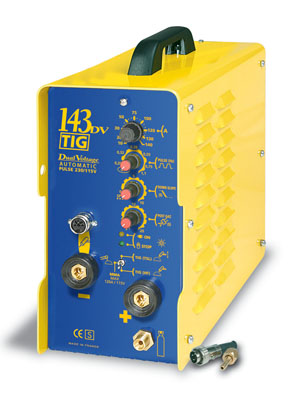

Welding machine GYSMI 143 DV HF TIG (Inverter) |
|
Characteristic:
MMA electrode welding unit. Single-phase with Dual voltage (115 - 220V).
Direct current (DC).
Electrodes: Ø 1.6 ► 4
mm
SMI Inverter Technology welder
Ideal for professionals of pipe-works and industrial maintenance,
boilermakers.
Assets:
TIG functions:
• 2 start possibilities: HF no touch, Lift (TSL) with touch – GYS process
• Pulsated function: pulsation of the current possible with adjustment of the frequency (Hz)
• Tack welding function: Position ”SPOT” for speed job
• Down slope and post-gaz adjustable.
• Up slope and pre-gaz fixed.
The other assets of the GYSMI TIG 143HF-DV:
• very light weight (7,4kg) and a reduced volume
• low current consumption on domestic mains 230 V
• protection against power generators’ variations (+/- 15%)
• ARC FORCE
• HOT START
• ANTI STICKING
• main supply lead: 1m80
• Accessories in OPTION:
• 044449 TIG Torch SR17V x 4m connections 10/25 mm²
• 047358 MMA Kit N°2: 6m cable 25mm², electrode holder, earth clamp, connector 10/25
• 041998 manometer/ flow meter 20 liters /min |
|

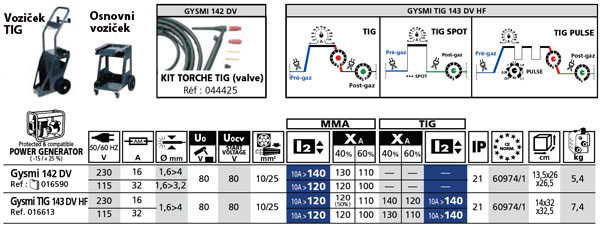

Technical features:
